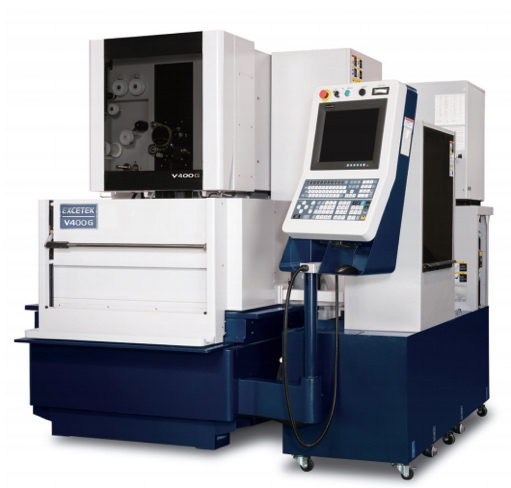

Maximum workpiece (mm): 750 x 550 x 215 mm(29.6" x 21.7" x 8.5")

Max. Work piece Weight: 500kg(1102 lb)

Travel of X/Y axes: 400 x 300 mm(15.8"x 11.8")

Travel of U/V axes: 80 x 80 mm(3.1"x 3.1")

Travel of Z axis: 220mm(8.7")（Submerged height 210mm(8.3")

Wire diameter: 0.15~0.3mm(0.004"~0.012")

Number of axes controlled: 5 Axis AC Servo Motor

Max taper angle: ±22°/ 80mm(±22°/ 3.1") with wide diamond guide and nozzle

Machine size: 2100 x 2230 x 2175 mm(82.7" x 87.8" x 85.6")

Machine Weight: 2350kg(5181 lb)

Water tank capacity: 650L

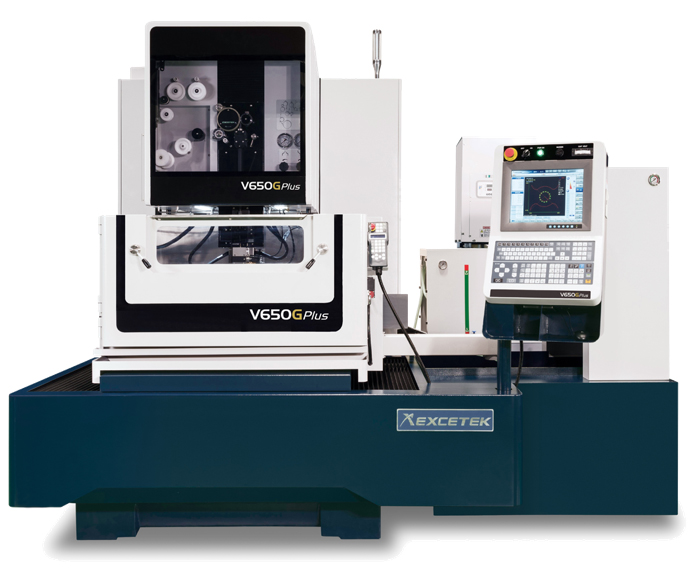

Maximum workpiece (mm): 1000 x 700 x 345 mm(39.4" x 27.6" x 13.6")

Max. Work piece Weight: 800kg(1764 lb)

Travel of X/Y axes: 650 x 400 mm(25.6"x 15.7")

Travel of U/V axes: 160 x 160 mm(6.3"x 6.3")

Travel of Z axis: 350mm(13.8") （Submerged height 310mm(12.3")

Wire diameter: 0.15~0.3mm(0.004"~0.012")

Number of axes controlled: 5 Axis AC Servo Motor

Max taper angle: ±30°/ 100mm(±30°/ 3.9") with wide diamond guide and nozzle

Machine size: 2520 x 2720 x 2290 mm(99.2" x 107.1" x 90.2") (89")

Machine Weight: 3850kg(8488 lb)

Water tank capacity: 850L

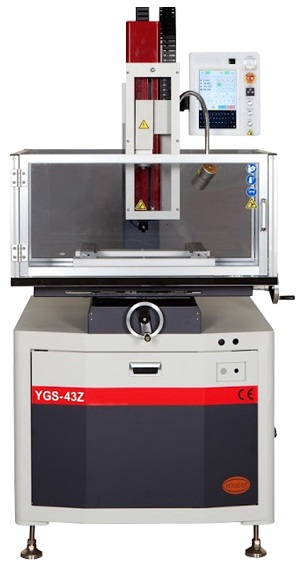

Moving type: Table moving

Table Size (width x depth)(mm): 910x650

Table Travel of X Y axis(mm): 400x300

Max. Travel of Z axis (mm): 400

Max. Travel of W axis (mm): 345

Range of electrode diameter(mm): Φ0.1~ Φ3.0

AEC (Automatice electrode changer): without AEC

Standard: 20 EA

AEC range: 0.3-3.0mm

Max. Length of electrode (mm): 400

Max. Height of work piece (mm): 350

Max. Weight of work piece (mm): 200

Machine net weight (KGS): 700

Display: Panel type

Total power supply: Single phase 220V 3KW 50~60HZ

Machine Tool Dimension (mm): 914X1030X2200

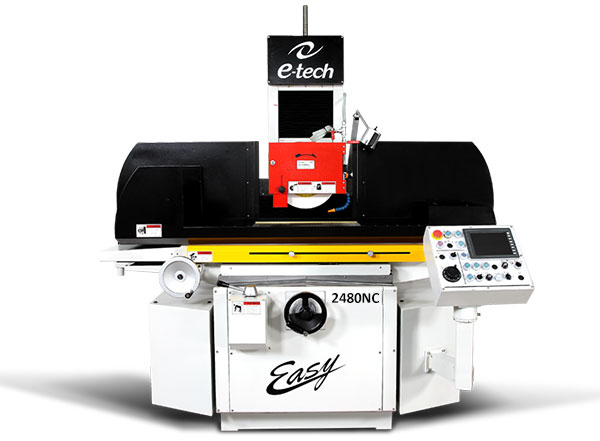

Tabla ölçüsü: 600x2000 mm

Maksimum Taşlama Uzunluğu: 2050 mm

Maksimum Taşlama Genişliği: 610 mm

Tabla ile Fenermili Merkezi Ara Mesafesi: 700 mm

Standart Manyetik Ayna Ölçüsü: 600x2000 mm

Tabla Hızı: 45717 mm
